SSA Cylindrical Rubber Fender

SSA Cylindrical Rubber Fender was the first rubber fender type to be produced with a defined performance.

SSA Cylindrical Rubber Fender Introduction.

SSA Cylindrical Rubber Fender Advantages.

SSA Cylindrical Rubber Fender Application.

SSA Cylindrical Rubber Fender Structure.

SSA Cylindrical Rubber Fender Performance Parameter.

SSA Cylindrical Rubber Fender Introduction


SunHelm’s SSA Cylindrical Rubber Fenders are a simple and versatile marine fender system and can be easily installed. SSA Cylindrical Rubber Fenders' proportional increase of reaction force and energy absorption up to the rated deflection is an advantage which resulting in softer berthing. SSA Cylindrical Rubber Fenders are available extruded and wrapped, depending on the size. They are available in outside diameter up to 2,700 mm and inside diameter ranging from 50 to 1,300 mm, variable in length up to 20 m. Special dimensions and features such as pre-bending or jointing can be requested.


SSA Cylindrical Rubber Fender Advantages


Robust and economical design.

Proportional increase of energy and reaction.

All sizes up to 2700mm diameter.

Thick wall resists abrasion and wear.

Progressive load-deflection curve.

Easy for installation.

SSA Cylindrical Rubber Fender Application

Multiple usage at different berths|Fishing and workboat berths|General Cargo Terminals|Bulk cargo berths|Ro-Ro Terminals|Tug Boats|Barge

领域Cylindrical Rubber1

SSA Cylindrical Rubber Fender

领域Cylindrical Rubber2

SSA Cylindrical Rubber Fender

领域Cylindrical Rubber3

SSA Cylindrical Rubber Fender

领域Cylindrical Rubber4

SSA Cylindrical Rubber Fender

SSA Cylindrical Rubber Fender Structure

图纸Cylindrical Rubber1图纸Cylindrical Rubber
图纸Cylindrical Rubber2图纸Cylindrical Rubber2

SPEC.

(mm)

ΦD

L

R

ΦG

T

100~400

40

600

70

100

20~30

400~700

50

650

80

110

20~30

700~900

55

730

90

120

20~30

900~1000

60

780

100

140

25~35

1100~1500

65

830

105

150

25~35

1500~2000

70

880

115

160

25~35




We will provide you with the best quality products and the most competitive prices!

Want to ship quickly?
No problem!


info@sunhelmmarine.com
+86 (0)531 88255160
WhatsApp: +86 135 7317 2195

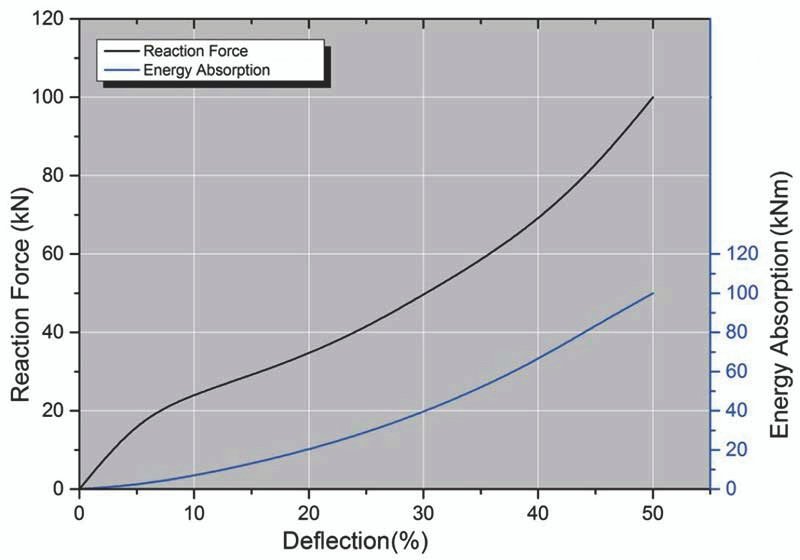

    SSA Cylindrical Rubber Fender Performance Parameter

    The following parameters are the dimensions and parameters of standard SSA Cylindrical Rubber Fenders. However, SSA Cylindrical Rubber Fenders make different product plans according to different project requirements. The project party needs to provide the corresponding ship type, size and weight. SunHelm Technical Department issues the product plan for the project, or the project party can directly provide the required SSA Cylindrical Rubber Fenders model specifications.

    SPECIFICATION *

    STANDARD REACTION FORCE

    STANDARD REACTION FORCE

    OD × ID (MM)

    R (KN)

    E(KNM)

    R (KN)

    E(KNM)

    150×75

    44

    1.5

    73

    2.3

    200×100

    60

    2.6

    95

    4.2

    250×125

    75

    4

    120

    6.5

    300×150

    89

    6

    143

    9

    350×175

    104

    8

    167

    13

    400×200

    119

    10

    191

    17

    500×250

    148

    16

    239

    26

    600×300

    179

    24

    286

    37

    700×350

    208

    31

    334

    50

    800×400

    237

    41

    383

    66

    900×450

    268

    52

    430

    84

    1000×500

    297

    64

    479

    103

    1100×550

    331

    77

    528

    129

    1200×600

    363

    95

    574

    152

    1300×650

    392

    108

    623

    179

    1400×700

    422

    128

    670

    208

    1500×750

    451

    147

    718

    238

    1600×800

    481

    176

    776

    282

    1700×850

    511

    206

    824

    338

    1800×900

    541

    247

    872

    406

    1900×950

    570

    288

    920

    487

    2000×1000

    653

    321

    1054

    584
