Why This Matters Now
Imagine a marina in San Francisco, where tides and tides bring daily traffic. A dock without sturdy cylindrical rubber fenders is like a car without airbags—every bump risks damage. With more people boating than ever, ensuring proper installation isn’t just smart—it’s urgent. Failing to install cylindrical fenders correctly could cost you thousands in repairs, frustrated customers, or worse, structural hazards.
Featured Snippet: How to Install Cylindrical Rubber Fender
1. Prepare & Inspect the Site: Check anchor points, clean sockets, verify thread integrity, and make sure the backdrop is smooth and free of debris.
2. Pre-assemble the Fender: Lay out the fender on a safe, flat surface. Feed through the suspension chain, bracket, or lifting sling (use spreader beams for long units).
3. Lift & Secure: Carefully lift the fender using soft slings, then attach chain ends or attach to U-brackets using shackles and split-pins—ensure angles on both sides are even.
4. Final Tightening: Install bolts and washers (for panel-mounted types), tightening so washers embed ~2–3 mm into rubber for optimal sealing and stability.
5. Perform Regular Checks: Lock all nuts or apply thread-locker adhesives. Plan routine inspections, especially in high-vibration marine settings.
Related Questions
- What is a cylindrical rubber fender used for?
A widely used marine fender: economical, durable, and ideal for berths, floating structures, and workboats. - Can you install cylindrical rubber fenders vertically?
Yes — depending on your set-up, they can be installed horizontally, diagonally, or vertically using brackets or simple chain bars. - How do you maintain rubber fenders?
Check chains, bolts, and washers regularly; use locking nuts or thread locks; replace worn seals—especially in tidal/vibrating environments.
Step-by-Step Installation Guide
| Step | What You Do | Why It’s Important |
|---|---|---|
| 1. Site Prep | Mark anchor layout using template; clean sockets & verify threads | Ensures correct alignment and prevents cross-threading |

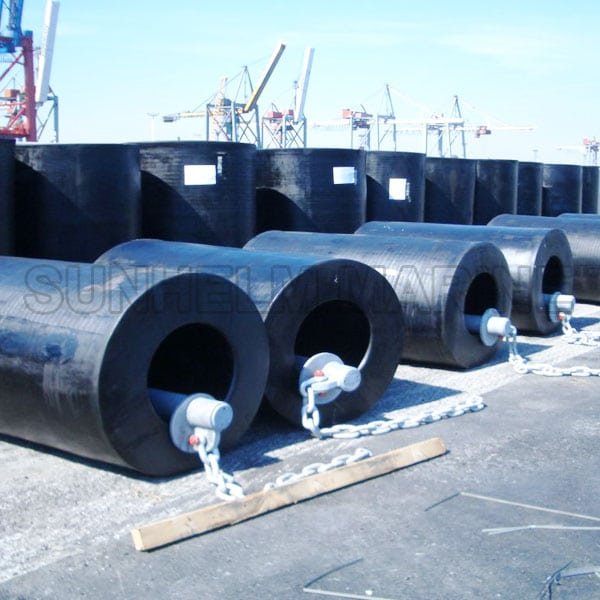

| 2. Pre-assemble | On a flat area: insert suspension chain/bracket through the fender bore | Keeps components organized and secure |
| 3. Lift Fender | Use soft sling or spreader beam; avoid damaging rubber | Prevents indentations or uneven weight distribution |
| 4. Align & Attach | Connect chains via shackles and split-pins; match angles on both sides | Ensures uniform contact and prevents twisting |
| 5. Bolt Down | For panel types: loosely fit bolts & washers, then tighten evenly until washer embeds 2–3 mm | Secures rubber to structure properly |
| 6. Final Adjustments | Apply thread-locker or locking nuts; torque all fixings evenly | Prevents loosening due to wave action |
| 7. Inspect Periodically | Revisit after initial use; retighten, replace sealant, lubricate chains | Maintenance ensures longevity and safety |
Pro Tips
- Use protective pads when lifting or lowering to protect the rubber’s outer surface.
- Consider environmental factors—UV, saltwater, oils—and clean/paint exposed metal regularly.
- Select proper diameter: Cylindrical fenders range from 15 cm to 2.6 m; choose size based on berthing energy calculations.
Conclusion
Installing cylindrical rubber fenders doesn’t have to feel daunting. With the right prep, tools, and technique, you can secure strong protection for your dock or vessel—avoiding damage and saving money. Follow the steps above, integrate pro tips, and you’ll be set for years to come.
FAQ
1. How far apart should cylindrical fenders be spaced on a dock?
You should space cylindrical fenders about 5–10% of your vessel’s length apart. For example, if your boat is 10 meters long, space your fenders 0.5 to 1 meter apart. For small boats, try not to exceed 1.2 meters between each fender. Closer spacing offers better protection, especially for tidal or rough-water areas.
2. What type of mounting brackets work best for tidal docks?
For docks with rising and falling tides, chain-mounted fenders work best. They move up and down with the water level. You can also use U-brackets with adjustable heights. To protect the rubber, use soft slings and spreader bars during installation. Always choose hardware that can handle movement without stress.
3. Can I retrofit cylindrical fenders onto older piers?
Yes, you can install cylindrical fenders on old piers. First, check the pier’s structure to make sure it can handle impact forces. Then choose a mounting method, like chain suspension or bolt-on plates. Many suppliers offer ready-made fenders with holes and custom lengths for easy retrofitting.
4. How do you calculate the size of a cylindrical fender needed?
To choose the right size, follow these steps:
- Estimate berthing energy using your ship’s size and speed.
- Pick a fender diameter based on charts—small boats may use 30 cm, while large vessels may need 1.5 meters or more.
- Check performance charts from the fender manufacturer. Make sure the fender absorbs enough energy and does not overload your dock structure.
5. How many cylindrical fenders are required per vessel?
Most boats need at least 4 cylindrical fenders. As a general rule:
- Use 1 fender every 3 meters (10 feet) of boat length.
- Small yachts may need 3–4 fenders.
- Larger ships may need 6–20, depending on their size and docking conditions.
If your area has strong waves or currents, add a few extra fenders for better safety.
