Sandblasting Hose

Sandblasting hoses are primarily used to move highly abrasive materials.

Sandblasting Hose Introduction

An abrasive sandblasting hose is a specialized type of hose that is used to convey abrasive materials, such as sand, steel shot, and aluminum oxide, from a sandblasting machine to the target surface. These hoses are designed to withstand the high pressure and abrasion that is involved in sandblasting operations.

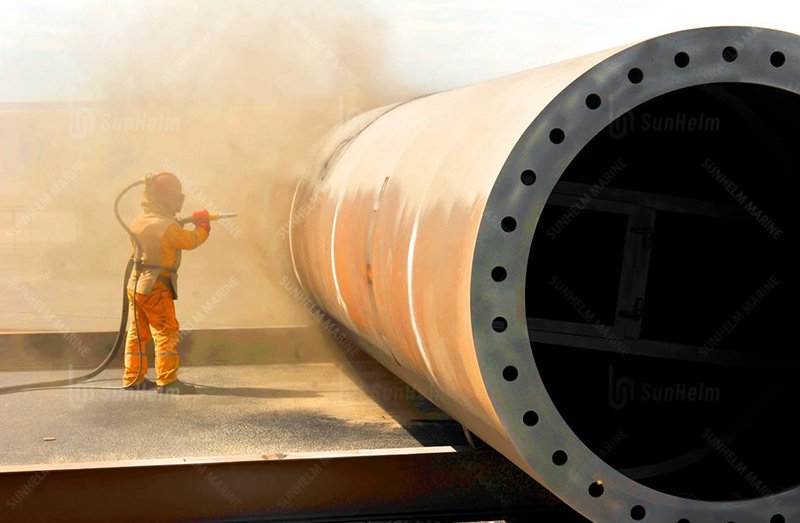

A sandblasting hose works by connecting the sandblasting machine to the target surface. The hose is filled with abrasive material, which is then propelled at high speeds through the hose and out of the nozzle. The force of the abrasive material hitting the surface is what causes the cleaning or preparation process.

Get Quote Now

Get To WhatsApp

Sandblasting Hose Application

Various tunnel projects｜ Tunnels｜Caverns｜Slope protection shotcrete｜Used in hydropower｜ Mining｜ Military defense

Sandblasting Hose

Sandblasting Hose

Sandblasting Hose Performance Parameter

The following parameters are the dimensions and parameters of standard Sandblasting Hoses. However, Sandblasting Hoses make different product plans according to different project requirements. The project party needs to provide the corresponding ship type, size and weight. SunHelm Technical Department issues the product plan for the project, or the project party can directly provide the required Sandblasting Hoses model specifications.

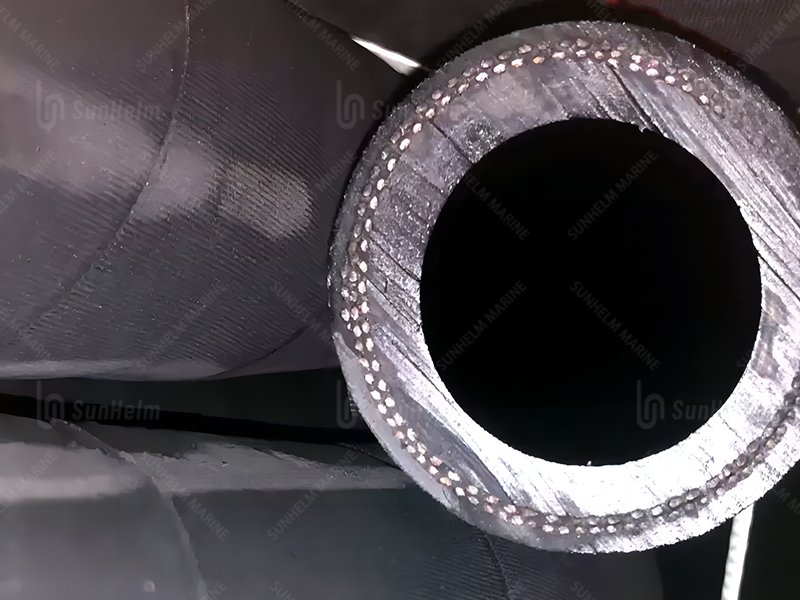

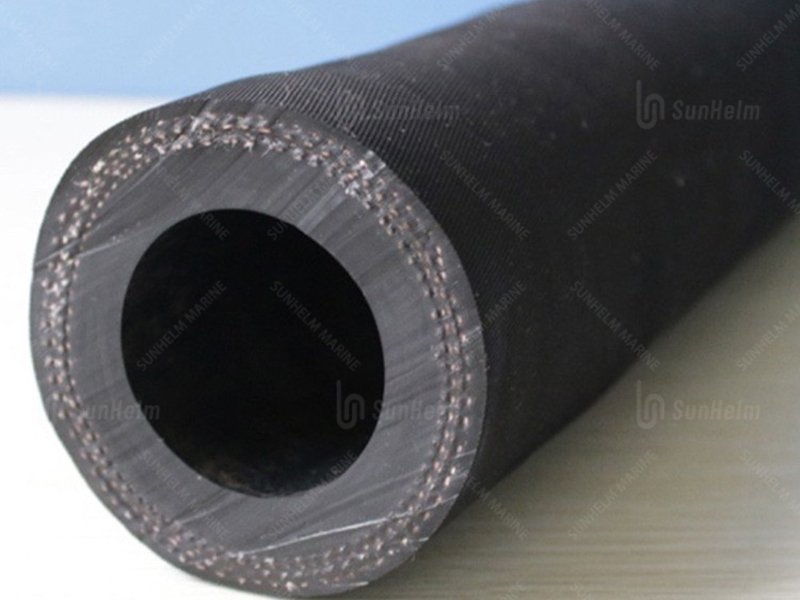

Sandblasting Hose Construction
Sandblasting Hose specifications.

Tube: Black natural rubber blend – Static Dissipating
Reinforcement: Multiple textile plies
Cover: Black SBR
Length: 50 feet and 100 feet
Temperature Rating: -25°F to +180°F (-32°C to +82°C)

Inch Diameter		Outer diameter		Work Pressure		Burst Pressure		Weight		Bending Radius
mm	inch	mm	inch	bar	psi	bar	psi	Kg/m	Ibs/ft	mm
13	1/2	29	1-1/6	12	157	36	530	0.49	0.33	130
19	3/4	35	1-5/16	12	157	36	530	0.61	0.41	190
25	1	40	1-9/16	12	157	36	530	0.84	0.56	254
32	1-1/4	50	1-57/64	12	157	36	530	1.06	0.71	320
38	1-1/2	54	2-1/8	12	157	36	530	1.22	0.82	380
51	2	70	2-13/16	12	157	36	530	2.11	1.41	508
63	2-1/2	83.5	3-1/4	12	157	36	530	3.26	2.23	630
The products can be designed and manufactured according to the reguest.
