If your berth sees angled berthing, tidal swing, RoRo turns or tight manoeuvres, cone fenders deserve a hard look. They’re not just “aesthetically different” from cell or cylindrical fenders — their shape changes how the rubber deforms under angled impact, and that gives real, measurable benefits in energy absorption, hull pressure and shear resistance.
Below I’ll explain, in plain language, why cone fenders handle angle compression better, what that means for your quay design, and practical selection/installation tips that actually matter on site.
Quick summary
Cone fenders use a tapered, cone-like cell that spreads and redirects loads when a ship strikes at an angle. That geometry keeps the fender stable, lets it deflect much more with a lower peak reaction force, and resists lateral shear — so vessels slow down without exposing the berth or hull to high point loads. These traits make cone rubber fenders ideal where berthing angles, tidal range or vessel manoeuvres are variable.
The geometry story — why the cone shape matters
Think of a cone fender as a “smart wedge” of rubber:
- Tapered nose, wide base: the narrow face that meets the vessel and the wider belly at the back create a progressive compression path. Early contact produces low force; as compression increases the larger base engages and carries load — this gives a smoother, progressively increasing reaction rather than an abrupt spike. That progressive behaviour improves energy absorption per unit height.
- Stable under tilt: when the vessel hits at an angle, the cone’s geometry naturally re-distributes the load instead of concentrating it at one corner. That keeps the rubber from folding or shearing out of position and preserves the intended compression behavior even at large angles. Manufacturers and testing show cone fenders remain stable at larger compression angles than many other fender types.
- High deflection capability: cone rubber fenders can compress a lot (manufacturers quote deflections in the ~70–74% range for some super-cone designs), so they soak up energy over a longer stroke. More stroke + lower peak force = gentler braking on the vessel and less local damage risk.
Angle compression performance: the technical wins
- Lower peak reaction for the same absorbed energy. That’s the practical goal: stop the vessel softly without huge forces on the berth or hull. Cone geometry gives an excellent energy-absorption / reaction-force (E/R) ratio.
- Better shear resistance. The wide base and internal profile resist lateral sliding and shear loads common during angling berths, so you often need less secondary hardware to control shear.
- Works at small and large contact angles. Top cone designs maintain performance up to small contact angles (manufacturers report stable performance up to ~10°) and still perform well at larger angles — a key point for berths that don’t see perfect perpendicular arrivals.
- Efficient use of space and material. Because cone fenders pack more deflection and energy capacity into a compact moulding, you can often achieve the same protection with shorter/shallower units than a cell fender of equal energy rating. That helps where headroom or quay face depth is limited.
Where cone fenders make the most sense
Use cone fenders when you see any of these in your design brief:
- Frequent angled berthing (ferries, RoRo, multipurpose berths).
- Big tidal ranges that change the contact geometry.
- Compact berth faces where you need high energy absorption with limited installation depth.
- Berths handling large ships (container, tankers, cruise) but with irregular approach angles or limited fender projection.
Practical design & installation tips

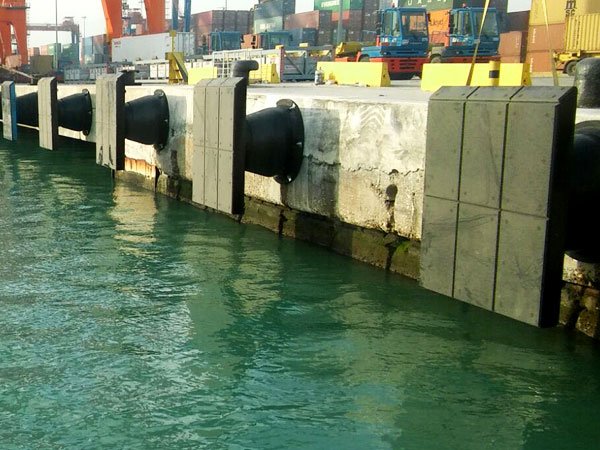

- Consider frontal frames or panels if you expect heavy shear or want to protect hull paint — many cone systems are supplied with low-friction fascia pads and frames to control contact and reduce abrasion.
- Check deflection allowance in your fender schedule (don’t assume the fender can compress unlimitedly). Use manufacturer data for the actual E/R curve rather than guessing from size alone.
- Watch anchor and bolt layout. The wider base spreads load — anchor patterns and bolt sizes should match the larger base loads rather than a narrow face load.
- Add overload stoppers for extreme cases. Some “super cone” designs include mechanical stops to avoid over-compression during accidental extreme impacts. That protects both the fender and quay.
- Plan inspection access. Even robust cones need regular checks for wear, cracking or anchor corrosion. Their single-piece moulding makes replacement straightforward but plan for lifting and handling.
Short checklist for choosing cone vs other fenders
- If angled impacts are frequent → favor cone.
- If maximum energy per unit height matters → cone wins.
- If you need the lowest possible reaction force for the energy level → cone is excellent.
- If you have long, slow perpendicular berthing in deep water and want redundancy → cell fenders might still be fine (but cones can often match performance in a shorter package).
FAQ
Q — Are cone fenders always better than cell fenders?
A — Not always. Cone rubber fenders outperform when angled berthing, limited projection or compact installations matter. For very high-energy perpendicular berthing where you have space, cell fenders are still a solid choice. Use an energy/reaction calculation to compare.
Q — Do cone fenders need special maintenance?
A — No exotic maintenance. Inspect for abrasion, weathering, anchor corrosion and fascia wear. If you use frontal panels or overload stoppers, include them in the inspection schedule.
Q — Can I retrofit cones to an existing berth?
A — Often yes. Cone fenders are compact and can be single- or multi-mounted. Check quay structural capacity and bolt pattern; you may need a frame to adapt to existing anchor positions.
Q — Do cone fenders increase hull pressure?
A — The cone’s progressive deformation usually reduces peak hull pressure versus some stiffer fenders because it spreads energy over a longer stroke. Still, always check hull pressure with the actual E/R curve for your chosen fender size.
Bottom line
For berths that experience angled approaches, big tidal swings, or limited fender projection, cone fenders offer superior angle compression performance: more deflection, better energy absorption, lower peak reaction and higher shear stability. They’re a modern evolution of cell fenders built to protect both quay and ship in real-world, messy berthing conditions. If your design brief includes any of the scenarios above, run a side-by-side fender schedule comparison using manufacturers’ E/R curves — you’ll often find cones give equal or better protection with a smaller footprint.
