Pipe Floats

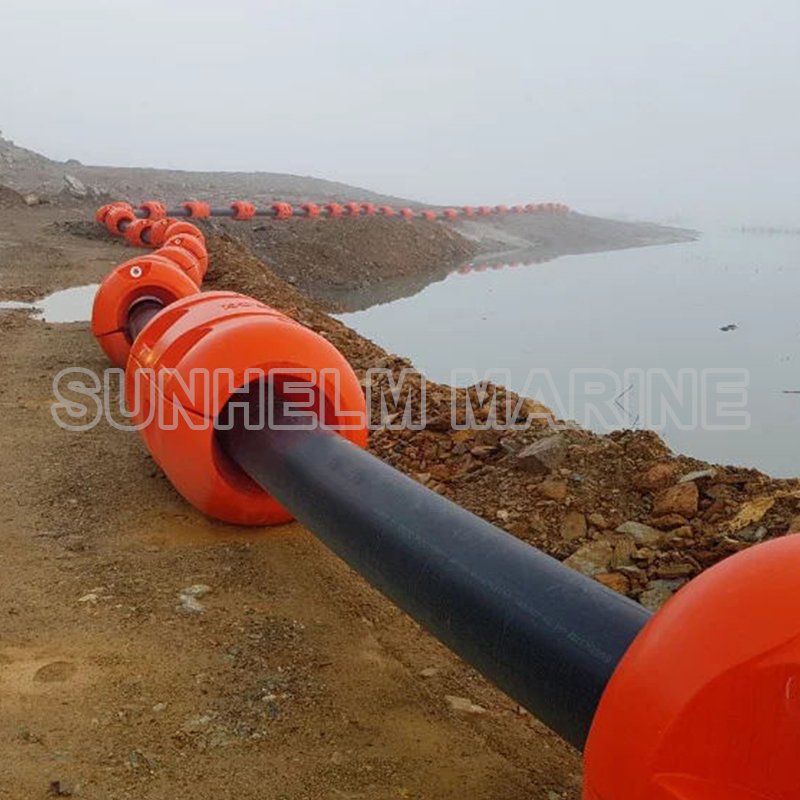

Pipe floats are the flotation of pipes, hoses, and cables for dredging, mining, and marine applications. They are always used with HDPE pipes, steel pipes, and rubber hoses to make the pipelines can work on the water. Besides, The pipe floats are an easy-to-install solution, which allows pipes to bend, while maintaining low resistance to waves, wind, and current.
- Marine, mining, landfill, duct and agricultural applications.
- Carry potable water, wastewater, slurries.
- Chemicals, hazardBous wastesand compressed gases.
Pipe Floats Feature
Good flexibility, excellent impact resistance, particularly suitable for construc-tions in open sea.
Easy to install and handle, lower costs formoving.
Higher corrosive resistance, longerworking life, 3 times longer than steelfloaters.
Lower costs, the cost performance isbetter than steel floaters.
Pipe Floats Construction
Steel pipe I.D.(mm) | FloatI.D.(mm) | Float O.D.(mm) | Float Length (mm) | Floating (N) |
300 | 330 | 1000 | 1000 | 500 |
350 | 380 | 1100 | 1100 | 550 |
414 | 430 | 1200 | 1200 | 1100 |
450 | 480 | 1300 | 1300 | 1150 |
500 | 530 | 1300 | 1400 | 1300 |
550 | 580 | 1400 | 1500 | 1600 |
600 | 630 | 1450 | 1650 | 1900 |
650 | 680 | 1500 | 1800 | 2100 |
700 | 730 | 1600 | 1900 | 2200 |
750 | 780 | 1700 | 1900 | 2700 |
800 | 830 | 1800 | 2000 | 3100 |
850 | 880 | 2000 | 2500 | 4600 |
900 | 930 | 2200 | 2600 | 5000 |
NOTE:Every 2 pairs of floating bodies are a group, and a pair consists of two pieces, that is, a perfect circle. This data is for reference only, and the specific matters are molded according to customer needs. | ||||
International Leading Pipe Floats Manufacturer
SunHelm Marine specializes in the production of engineering products for dredger dredging pipelines. Sunhelm Marine has more than 20 years of production experience and has built large-scale production workshops with an indoor storage area of 12,000㎡. SunHelm Marine is a leading manufacturer of dredging pipeline products.
SunHelm Marine has the ability to produce dredging mud suction and discharge hoses with a maximum diameter of 1100mm and various types of special steel pipe floats for dredging. SunHelm Marine relies on various advanced testing facilities to accurately control product quality.
