Launching or transporting a vessel is no small task. Whether you’re working in a shipyard or handling sales for marine equipment, one thing is clear: the layout of marine airbags can make or break the entire operation. Get it wrong, and you risk damaging the vessel, delaying schedules, or even compromising safety. Get it right, and you’ll ensure a smooth, cost-effective, and controlled process.
In this article, we’ll dive deep into why marine airbags layout is so critical, the principles behind it, common arrangement types, and practical tips to avoid costly mistakes.
What Are Marine Airbags?
Marine airbags, also called ship launching airbags, are heavy-duty rubber cylinders designed to provide buoyancy and cushioning when launching or moving ships. They are widely used in:
- Ship launching – rolling the vessel from the slipway into the water
- Vessel hauling – pulling ships onto land for repairs or inspections
- Heavy structure transport – moving offshore jackets, caissons, or large modules
- Salvage and rescue operations – refloating stranded ships
Built with multiple layers of high-strength rubber and synthetic-tire cord, marine airbags can withstand enormous pressure. But their performance depends on how you arrange them under the hull.

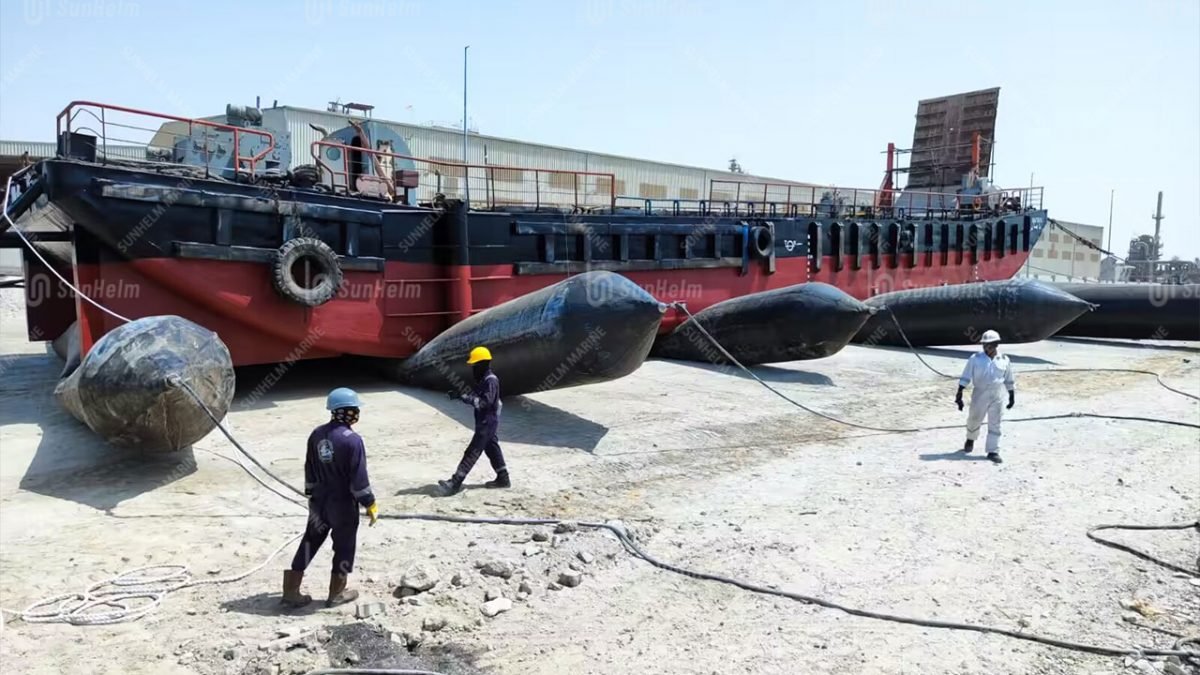

Why the Marine Airbag Layout Is So Important
Choosing the right marine airbags isn’t enough; how you place them is what ensures success. Here are the five main reasons layout matters:
1. Safety First
An improper layout can cause uneven load distribution. This may lead to dangerous situations like:
- The ship leaning to one side during launching
- Airbags bursting due to excessive localized stress
- Sudden rolling or uncontrolled sliding
A well-planned layout ensures a stable, predictable launch, keeping workers and assets safe.
2. Even Load Distribution
Different parts of a vessel weigh differently. For example, engine compartments are typically much heavier than bow sections. Correct airbag placement ensures that the hull is fully supported, preventing dents, cracks, or structural deformation.
3. Stability and Control
When launching or transporting a vessel, you need to control its movement at every stage. Properly spaced airbags maintain balance and prevent sudden shifts that could cause accidents or misalignment.
4. Cost and Time Efficiency
Using too many airbags increases costs unnecessarily, while using too few risks damaging the ship. A precise layout reduces both material expenses and operational time, leading to fewer delays and lower repair bills.
5. Adaptability to Complex Scenarios
Not all launches happen in perfect conditions. Tides, uneven slipways, varying hull shapes—all these factors demand a layout tailored to the situation. There is no “one-size-fits-all” setup.
Principles of a Proper Marine Airbag Layout
A good marine airbag layout isn’t about guesswork. It’s the result of planning, calculation, and on-site adjustments. Here are the key principles:
1. Plan According to the Vessel
Before deciding on the layout, you must consider:
- Ship dimensions – length, beam, draft
- Weight distribution – heavier sections like engine rooms or cargo holds
- Hull shape – flat-bottomed vs. V-shaped hulls
2. Maintain Symmetry
Airbags should be arranged symmetrically along the ship’s centerline. Any imbalance could cause tilting during the launch, which is dangerous and costly to correct.
3. Control the Spacing
The spacing between airbags directly affects load distribution:
- Too close = unnecessary costs and higher rolling resistance
- Too far = risk of localized stress and structural deformation
In most cases, spacing ranges from 1.2m to 2.5m, but always refer to manufacturer guidelines.
4. Align with the Slipway or Working Surface
The layout must match the slope and structure of the slipway or ground. For uneven surfaces, consider using staggered or multi-row arrangements to balance forces.
5. Keep Room for Adjustment
Even with calculations, on-site adjustments are often necessary. Always allow extra space to reposition airbags if the initial setup shows uneven pressure or movement.
Common Airbag Layout Types
Different vessels and conditions require different layouts. Here are the most commonly used types:
1. Single-Row Longitudinal Layout
- How it works: Airbags are arranged in a single line along the center of the hull.
- Best for: Small to medium vessels with relatively even weight distribution.
- Advantages: Simple setup, cost-effective, easy to control.
- Limitations: Not ideal for heavy or unevenly loaded ships.
2. Double-Row or Multi-Row Layout
- How it works: Two or more parallel rows of airbags are placed under the hull.
- Best for: Large vessels or those with complex weight distributions.
- Advantages: Higher load-bearing capacity, improved stability.
- Limitations: Requires more space and careful synchronization.
3. Staggered Layout
- How it works: Airbags are offset in a zigzag pattern rather than directly aligned.
- Best for: Hulls with irregular shapes or highly curved bottoms.
- Advantages: Maximizes hull support and improves adaptability.
- Limitations: Slightly more complex to execute.
4. Segmented Layout
- How it works: Airbags are divided into sections along the hull to allow independent adjustments.
- Best for: Long vessels or launches on uneven surfaces.
- Advantages: Greater control over each segment during launching.
- Limitations: Requires more planning and monitoring.
Practical Tips for On-Site Implementation
- Check Each Airbag Before Use
Inspect for leaks, wear, or damage. Replace any that fail the test. - Use Matching Marine Airbags
Always use airbags of similar size, pressure rating, and specifications to avoid imbalance. - Monitor Inflation Pressure
Airbags in the same row should have consistent pressure levels to avoid uneven rolling. - Prepare a Backup Plan
Keep one or two spare airbags nearby in case of unexpected damage or misalignment. - Assign a Launch Supervisor
One person should be responsible for coordinating all movements and monitoring safety conditions.
Common Mistakes to Avoid
- Placing airbags too close or too far apart
- Ignoring hull shape and weight distribution
- Using mixed-size airbags without calculating pressure differences
- Skipping pre-launch inspections
- Neglecting tidal or weather conditions
Even small oversights can lead to structural damage, accidents, and cost overruns.
FAQ: Marine Airbag Layout
Q1: Can I use the same layout for every launch?
No. Each vessel has unique dimensions, weight, and hull shapes. Always design layouts case by case.
Q2: How many airbags do I need?
It depends on vessel size, weight, and the working surface. Consult your manufacturer or supplier for calculations.
Q3: What’s the safest airbag spacing?
Typically between 1.2m and 2.5m, but exact spacing should follow engineering guidelines.
Q4: Can I launch large vessels with a single-row layout?
Not recommended. For large ships, double-row or multi-row setups provide better stability.
Q5: How do I know if my layout is safe?
Check load calculations, follow manufacturer instructions, and run a dry test before launching.
Final Thoughts
The layout of marine airbags is more than just placing a few cylinders under the hull—it’s about precision, safety, and efficiency. By understanding your vessel, planning carefully, and following proven principles, you can ensure smooth launches and avoid costly accidents.
If you’re a shipyard looking for reliable marine airbags or technical guidance, partnering with an experienced supplier can make all the difference. An expert team can help you design the right layout, calculate spacing, and provide on-site support for a flawless operation.
